•7’ to 10 1/2' Cutting Widths                  •Heavy-duty Welded Frame
•Heavy-duty Roller Bearings                   •1 5/8” Round Axles
•USA Made Discs                                 •11” Disc Spacing
•Disc Scrapers                                     •Welded Hydraulic Cylinder
Model
 Width of
Cut
 No. of
Discs
 No. of
Bearings
 Draw
Bar H.P.
 Weight
HHB-16
 7’
 16
 8
 35-65
 3400
HHB-20
 8 1/2'
 20
 8
 45-75
 3700
HHB-24
 10 1/2'
 24
 8
 55-85
 4500

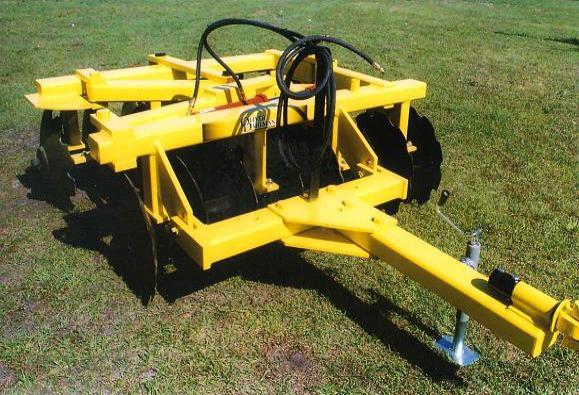

SERIES HHB OFFSET HINGE HARROW
STANDARD EQUIPMENT

26” x 1/4" Notched Discs
Hydraulic Control Package
Disc Scrapers (T-1 Steel)

OPTIONAL EQUIPMENT

26” x 5/16” Notched Discs
Bearing Wear Plates


Oliver & Dahlman Equipment Co. reserves the right to change the
design, material and specifications of its products without notice.
Illustrations may include optional equipment and accessories, and
may not include all standard equipment.
